México / EspanolSpider Clamp
FEATURES
- Available for pipe sizes 2″–36″
- Dual expanding clamps for precise internal alignment
- Stainless steel construction for strength and corrosion resistance
- Allows full 360° weld access with no obstructions
- Ensures accurate, repeatable fit-ups with minimal distortion
- Quick hand-bar adjustment for fast setup
- Lightweight and compact for shop or field use
- Compatible with carbon steel, stainless, and exotic alloys
- Built for demanding industrial alignment applications
DOWNLOADS
Sawyer’s Spider Clamp
Model 400

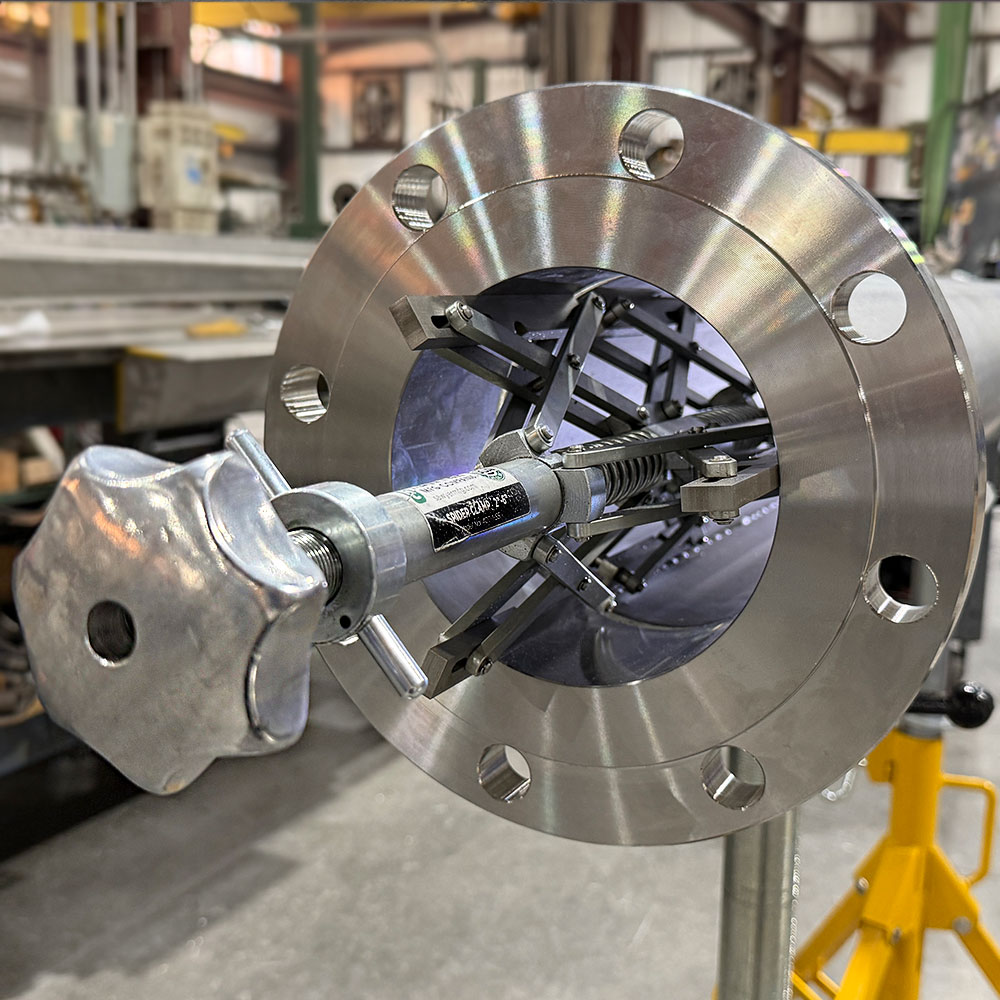

When precision alignment counts, the Spider Clamp – Series 400 delivers the accuracy, strength, and reliability that professional welders depend on. Engineered for internal alignment of flanges and short pipe sections, the Series 400 provides a secure and stable hold that ensures true bore alignment before tack-welding or final weld out.

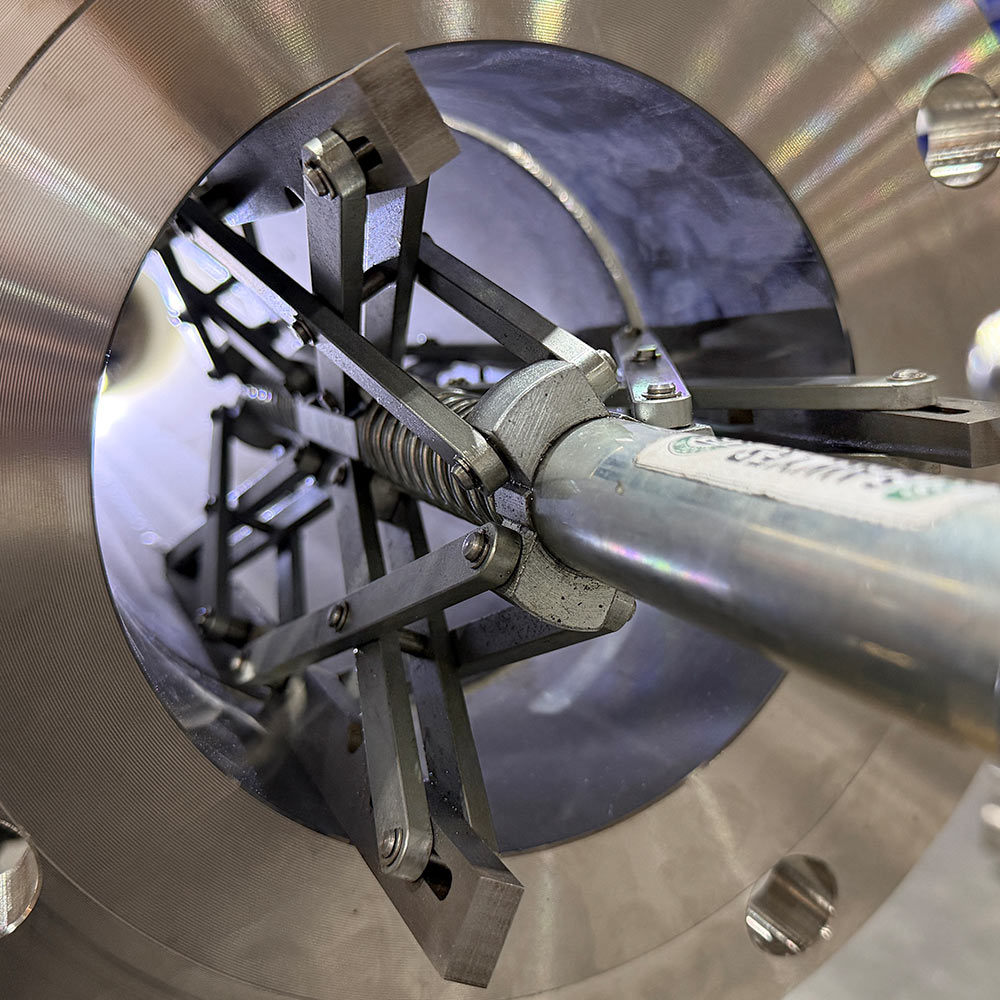

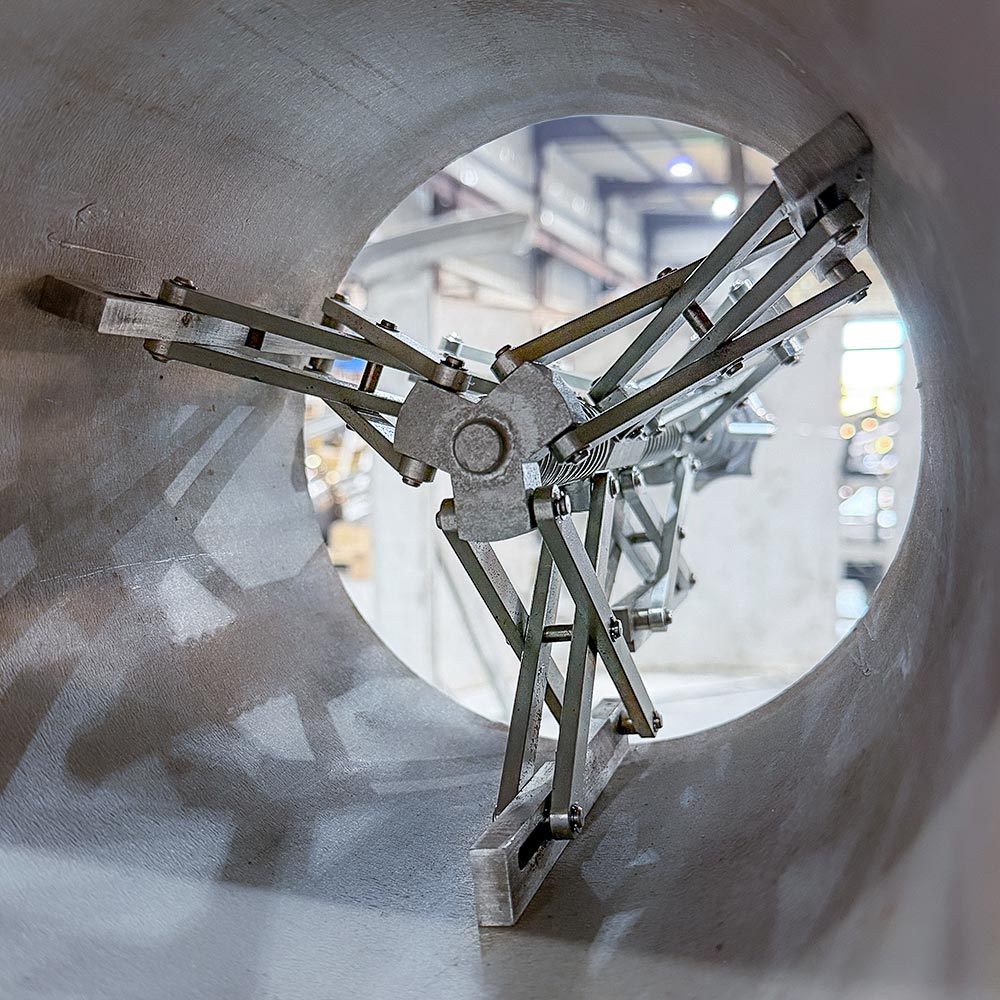

The design features two independently operated expanding clamps connected by a precision-machined centering shaft. The lower clamp is inserted into the first pipe and tightened via a hand knob, anchoring the tool firmly in place. The upper clamp is then expanded with the hand-bar to align and secure the mating pipe or fitting. This independent movement allows the clamp to compensate for small variations in internal diameters—making it ideal for field fit-ups, prefabrication, or situations where precision machining is not possible.
Built entirely from stainless steel, the Spider Clamp 400 resists corrosion and is compatible with a wide range of materials—from carbon and stainless steel to duplex and exotic alloys. Its smooth, burr-free contact surfaces protect internal finishes while providing the grip required for stable alignment. Because the clamp sits fully inside the joint, welders have complete 360-degree access around the outside of the pipe—eliminating the need for repositioning or partial removal during welding—helping welders achieve faster setup, cleaner joints, and consistent, high-quality weld results every time.
Available in three size ranges covering 2″ to 36″, the Series 400 offers a robust yet efficient design that remains easy to position and operate. Weighing from 3 lbs. up to 145 lbs., it provides the strength and stability required for heavy-duty pipe alignment while maintaining precise, repeatable control in shop or field environments. Built to withstand demanding industrial conditions, the Spider Clamp 400 ensures consistent accuracy, reduces setup time, and enhances overall weld quality—making it a trusted solution for professional fitters and fabricators working with critical piping systems.
