SHORT FOLDING V-HEAD PIPE STAND

Reliable Support in Tight Spaces

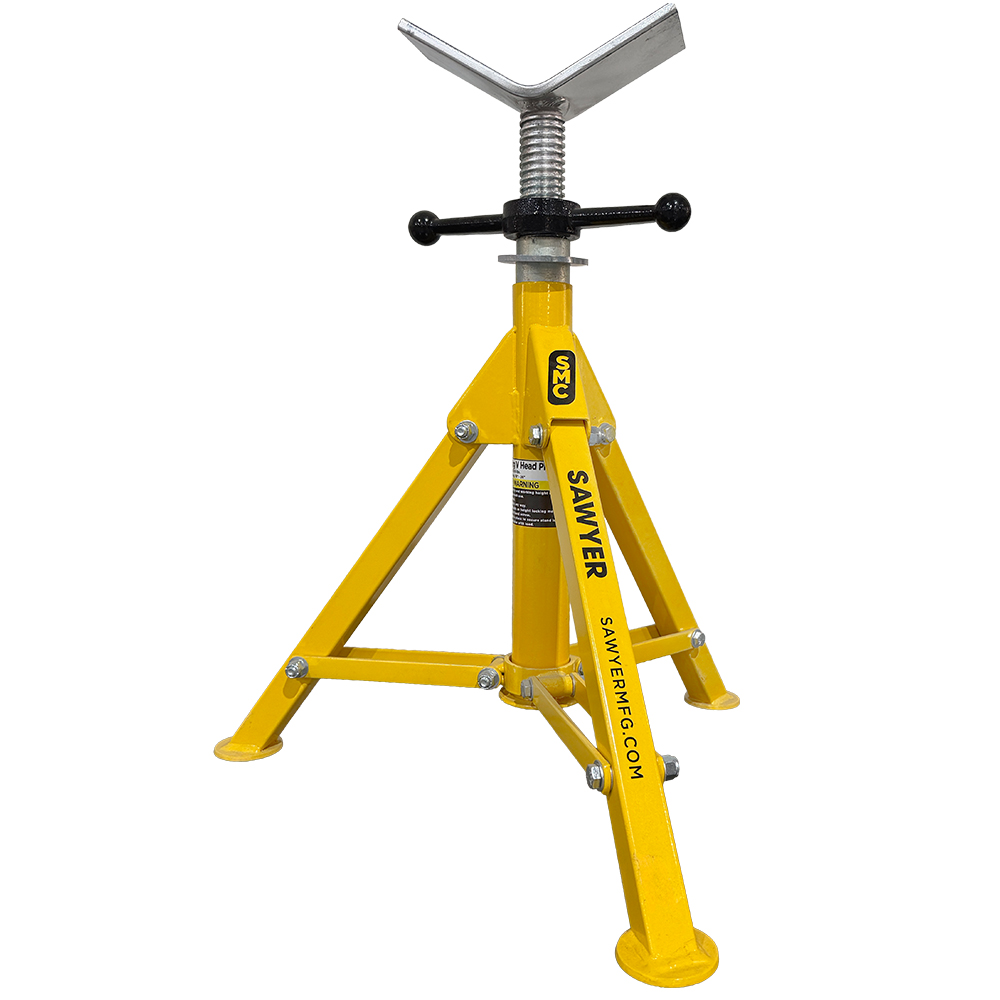

455-S Short Folding V-Head Pipe Stand

FEATURES

  • Head for pipe up to 12” in diameter2500 lb. (1135 kg.) load capacity
  • Height adjustment range of 16” to 26”
  • Designed for low-clearance applications
  • ACME threaded adjustment rod for smooth height changes
  • Locking ring allows fast, secure height adjustments
  • Large adjustment screw turns easily
  • Quick setup and tear-down for field use
  • Heavy-duty steel frame with reinforced legs
  • Folding leg design for easy transport and compact storage

DOWNLOADS

Short Folding V-Head Pipe Stand Cutsheet
DOWNLOAD

Sawyer’s Short Folding V-Head Pipe Stand

Model 455-S

Sawyer’s Short Folding V-Head Pipe Stand is engineered specifically for low-clearance pipe support applications where traditional pipe stands are too tall to operate efficiently. Designed to deliver dependable strength in compact work environments, this stand provides reliable pipe support for fit-up, welding, and fabrication tasks in both shop and field settings.

Built with a rugged steel frame, the Short Folding V-Head Pipe Stand offers stability and durability while maintaining a reduced working height range of 16 to 26 inches. This compact height profile makes it ideal for use in fabrication bays, inside vessels, beneath piping systems, or in confined areas where vertical space is limited. The secure V-head cradle holds pipe firmly in place, supporting pipe diameters up to 12 inches while helping maintain alignment throughout the welding and fabrication process.

A heavy-duty ACME threaded adjustment rod allows for smooth, controlled height changes, giving operators the ability to fine-tune pipe positioning with ease. The integrated quick-lock washer provides fast, secure height adjustments, helping reduce downtime and improve overall productivity during repetitive setup tasks.

Designed with mobility and convenience in mind, the folding leg configuration allows the stand to be quickly set up, transported, and stored when not in use. This space-saving design makes it well suited for mobile crews, jobsite work, and shops where storage space is at a premium.

With a 2,500-lb load capacity, Sawyer’s Short Folding V-Head Pipe Stand delivers dependable performance for daily pipe handling demands. Whether used as a standalone support or paired with additional pipe stands for longer pipe runs, it provides consistent stability and control during critical operations.

Built to meet the expectations of professional welders and fabricators, this compact pipe stand combines strength, adjustability, and practicality into a reliable solution for low-clearance applications where performance and efficiency matter most.
