SHORT FIXED V-HEAD PIPE STAND

Strong Support in Low Profile
Short Fixed V-Head Pipe Stand

FEATURES

  • V-Head for pipe up to 12” in diameter
  • 2500 lb. (1135 kg.) load capacity
  • Height adjustment range of 20” to 37”
  • Designed for low-clearance applications
  • ACME threaded adjustment rod for smooth height changes
  • Locking ring allows fast, secure height adjustments
  • Rigid steel frame ideal for shop and stationary use
  • Fixed leg design provides maximum stability

DOWNLOADS

Short Folding V-Head Pipe Stand Cutsheet
DOWNLOAD

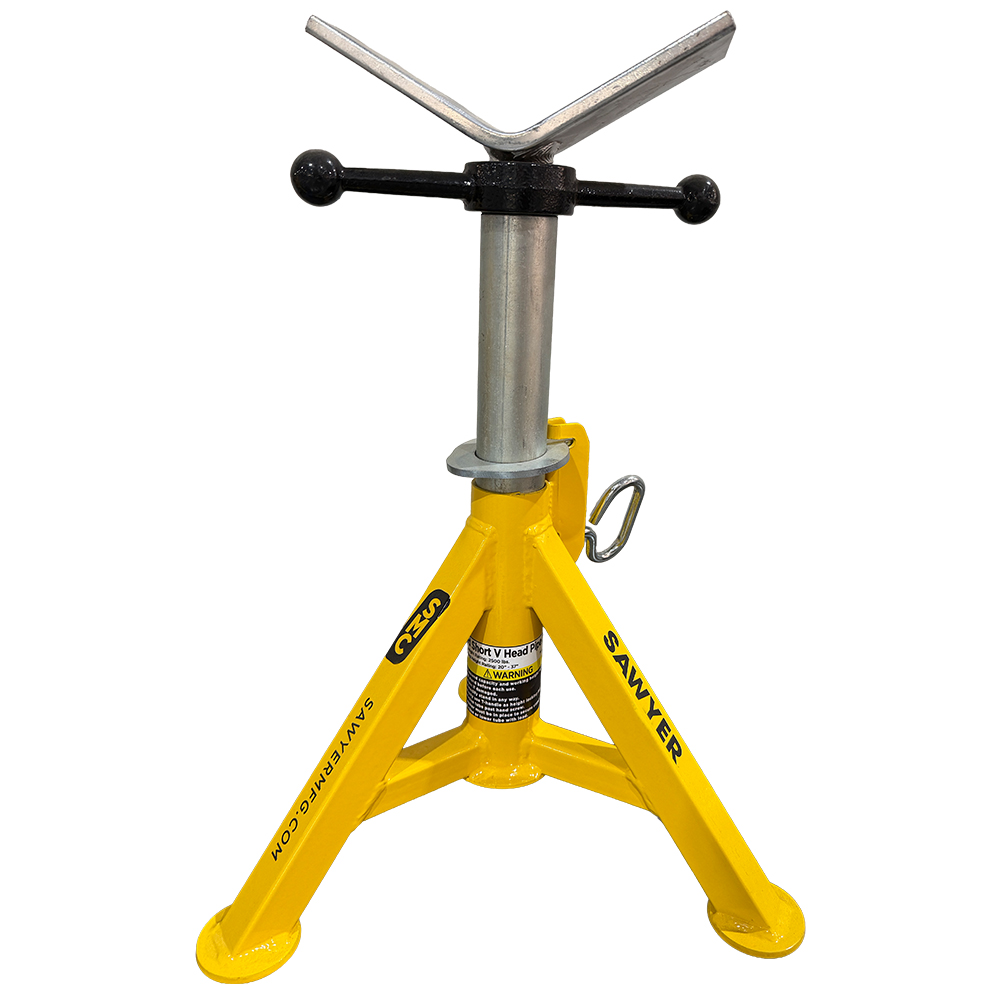

Sawyer’s Short Fixed V-Head Pipe Stand

Model 455-FXS

Sawyer’s Short Fixed V-Head Pipe Stand is designed for low-clearance pipe support applications where stability and strength are critical. Built with a rigid, non-folding steel frame, this compact stand delivers dependable support for pipe fit-up, welding, and fabrication work in shop and industrial environments where vertical space is limited.

Engineered with a reduced working height range of 20 to 37 inches, the Short Fixed V-Head Pipe Stand allows operators to safely and efficiently position pipe in tight spaces such as fabrication bays, vessels, structural assemblies, and confined work areas. The fixed leg configuration provides a solid foundation, minimizing movement and helping maintain consistent pipe alignment throughout the fabrication process.

A durable V-head cradle securely supports pipe up to 12 inches in diameter, keeping material centered during fit-up and welding operations. This design improves accuracy while reducing the need for constant repositioning, helping crews maintain productivity and workflow efficiency.

The stand features a heavy-duty ACME threaded adjustment rod that allows smooth, precise height changes. A quick-lock washer enables fast, secure vertical adjustments, reducing downtime during repetitive setup tasks and allowing operators to fine-tune pipe positioning with confidence.

With a 2,500-lb load capacity, Sawyer’s Short Fixed V-Head Pipe Stand is built to handle demanding daily use while maintaining a compact footprint. Its rigid construction makes it especially well suited for stationary setups where consistent support and long-term durability are required.

Whether used as a single support stand or paired with additional pipe stands for longer pipe runs, the Short Fixed V-Head Pipe Stand delivers reliable performance in environments where space is limited but strength cannot be compromised. Built with the durability and craftsmanship expected from Sawyer equipment, this stand provides a dependable solution for professionals who demand stability, precision, and long-lasting performance in low-clearance pipe fabrication applications.
