Machining

  • Custom Machining
  • CNC Lathe Machining & Turning
  • CNC Vertical Machining & Milling
  • Large Machining
  • Conventional Machining
  • Typical Part Size: .50

  • Part Width: up to 120

  • Part Length: 120

  • Part Height: up to 60

  • Milling Width: up to 80

  • Milling Length: up to 80

  • Milling Height: up to 60

  • Turning Diameter: up to 80

  • Lifting Capacity: 15 Tons

Sawyer Machining Services

There are plenty of machine shops to choose from, so why Sawyer? Not only is our facility staffed by skilled craftsmen and expert technicians with superior capabilities in a wide variety of high precision machining processes, but our hardworking, dynamic culture means we are always willing to go the extra mile to meet any challenge and exceed any expectation. We pride ourselves on completing machine service jobs others won’t or can’t do. Quite simply, we just make it work. That’s the Sawyer difference.

Sawyer’s capable employees and craftsmen are skilled in various machining processes and are able to complete nearly any job request you might have from basic metal cutting to high precision machining, and this machining work can be done on both CNC machines and manual machines. We will work with you to manufacture your parts with quality, efficiency and short lead times.

Sawyer craftsmen produce high quality custom machined parts to fit nearly any need. Our dedication to precision machine services and quality machining guarantees customer satisfaction regardless of the specifications. From single part prototypes to small volume production runs and on CNC machines or manual machines, if it can be envisioned; there’s a good chance Sawyer can make it.

We never rest on our laurels at Sawyer and are continually adding to and upgrading our equipment and capabilities, so feel free to contact us about your needs. Even if you just have a rough idea, we will work with you to solidify it into a genuine concept, and if we are currently unable to complete a task within our facility, we have a trusted group of vendors we work with who will definitely be able to satisfy your needs. When you partner with Sawyer, we want you to succeed because as our partner, your success is our success.

Contact a Sawyer representative today to discuss how we can solve all your needs for custom machining services.

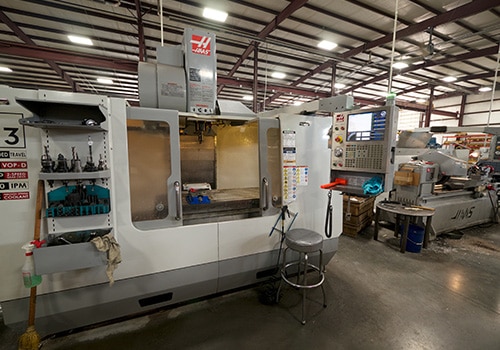

CNC Machining

  • Haas CNC Vertical
  • Haas CNC Horizontal
  • Haas CNC Lathe
  • Sawyer CNC machinists are experts in producing complex machined components with very close tolerances

Precision CNC Turning

  • 4 CNC Lathes with bar capacity from .25" - 3" and Chucking capacity to 14"
  • Precision turning to .0004"
  • Live Tooling

Precision CNC Milling

  • 4 Vertical Machining Centers; table sizes 16" to 34"
  • 4 Horizontal Machining Centers; w/2-axis capability and 16"x16"x24" capacity
  • Jig Bores to .0003" tolerance

Equipment List CNC Machines

  • (2) Haas VF3 Vertical Mill 3 Axis
  • (1) Haas TL3 Teach Lathe
  • (1) Haas SL10 Lathe
  • (1) Haas SL30 Lathe
  • (1) Haas ST20 Live Tooling Lathe

Shop Capabilities

    Complex Assembly and Testing

    • Electro-Mechanical
    • Mechanical
    • Gearboxes
    • Systems Integration

    Broaching

    • Vertical Broaching
    • Horizontal Broaching
    • Gears - Spur, Bevel, Helical, Worm
    • Splined Shafts
    • Keyway Cutting

    Planing

      Shaping

        Slotting

          Threading Processes

          • External/internal Thread Cutting
          • Roll Turning
          • Tapping
          • Thread Milling

          Sawing

          • Steel height: 13"
          • Steel width: 13"

          Equipment Capabilities

          • Horizontal Boring Mill
          • Vertical Boring Mill
          • Engine Lathes
          • Milling Machines
          • Turret Lathe
          • Radial Drills

          Equipment List - Manual Machines

          • (1) Simmons Bore Machine and Mill Machine
          • (1) Fitchburg Horizontal Bore and Mill Machine
          • (1) Barrett Bore Machine and Mill Machine
          • (1) ACME 60" Vertical Turn Lathe
          • (1) Webster-Bennet 60" Vertical Turret Lathe
          • (1) Union Horizontal Mill
          • (1) KEGAI Horizontal Mill
          • (1) Monarch Heavy Duty Engine Lathe 36" Swing
          • (1) HEM Saw
          • (1) Kingston Milling Machine
          • (1) Bridgeport Milling Machine
          • (1) Moris Radial Arm Drill
          • (1) Cincinnati Universal Mill
          • (1) Victor 10" Engine Lathe
          • (1) Kingston 22" Engine Lathe
          • (1) Kingston 26" Engine Lathe
          • (1) Lion 20" Engine Lathe
          • (1) Warner Swasey #3 Turret Drill Press
          • (5) Palmgren 15" Drill Press
          •
          •
            Valve Body
            Hydraulic Cylinder
            Beveling Band Crawler
          •
          • Project Description
            Valve Body for Aerial Exercise Equipment
            Hydraulic Cylinders for Heavy Equipment (Pipe Bending Machines)
            Torch Holder for Pipe Beveling using Beveling Bands
          • Metal Fabrication Capabilities / Applied Processes
            • Any metal rings and flanges up to 66"
            • Turn on Vertical Turret Lathe
            • Drill
            • CNC
            • Steel Tube
            • Steel Plate
            • Chrome Bar
            • Aluminum
            • 2 Axis CNC
          • Equipment / Skills Used to Manufacture Part
            • Vertical Turret Lathe
            • Haas CNC
            • +.002/-.002
            • Lathe
            • Plate Burner
            • Sub-Arc/Handweld
            • +.002 / -.002
            • Haas CNC
            • Solid CAM program
            • +.002 / -.002
          • Outside Vendors Used
                • Aluminum Foundry
              • Overall Part Dimensions
                • up to 66"
                • 40" x 14"
                • 11" x 9" x 6"
              • Material Used
                    • Testing / Inspection Performed
                      • Dimensional Check
                      • Weld Non-Destructive Testing
                      • 3000 PSI Hydraulic Pressure Test
                      • Visual
                      • Operations Test
                    • Industry for Use
                      • Oil/Natural Gas
                      • Construction
                      • Pipeline Construction
                      • Oil and Gas Pipeline Construction
                      • Pipe Fab
                    • Turnaround Time
                      • 1 Day
                      • 6-8 Weeks
                      • 2 months
